MINI-MAG ZERO AIR LOSS DRAIN

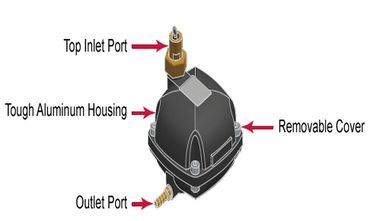

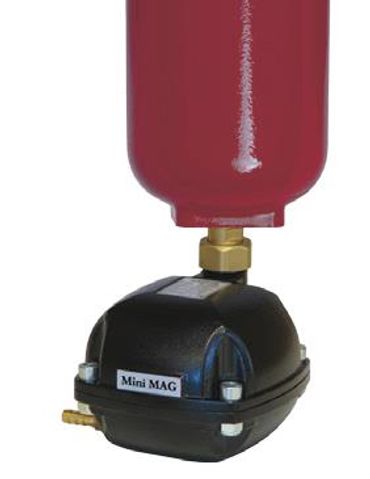

The Mini MAG is the optimum choice in compact energy saving condensate drains. Unlike timed or electronic drains which require electricity to operate, the Mini MAG operates using a magnetic level sensor providing energy saving zero air loss operation without the need for a power source. Perfectly suited for coolers, refrigerated dryers, liquid separators, and especially compressed air filters (due to its compact size), the Mini MAG uses a 2/2 way level controlled magnetic actuator which opens and closes a direct cylinder valve, discharging the condensate from your compressed air system without losing any of your valuable compressed air. The Mini MAG meets the demands of virtually any application regardless of the condensate flow. It fits any compressed air filter regardless of size without any set up or adjustment.
